Molift Rail System
A cost effective and safe ceiling hoist system for most transfer situations.
The Molift Rail System has rail profiles with innovative solutions for integration into all types of ceilings and walls. The wide range of fixing options results in making it one of the most most efficient installation processes in the market.
It is easily integrated and is aesthetically adjusted to the design and architecture of the room. The range of switches and other transition options makes the rail system extremely flexible.
Customised Capacity
Depending on the different needs and choice of the hoist motor, Molift Rail System can be constructed from 160 up to 500 kg.
Cost Effective Solutions
The efficient installation process, the flexibility and the many features make Molift Rail System a cost-effective, competitive and profitable investment for hospitals, institutions, health care settings and the home. This helps create a practical and efficient workplace for nurses and caregivers, as well as an attractive environment for patients and visitors.
Characteristics & Options
- Effective and safe installation
- Smart fixing details
- Can be integrated into suspended ceilings

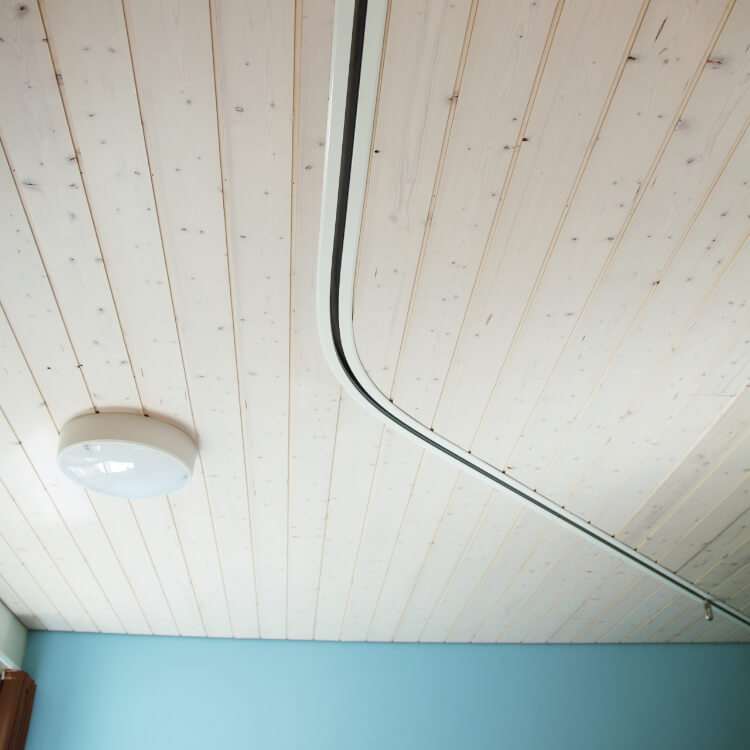

- Curved rails 30°, 45°, 60° and 90°

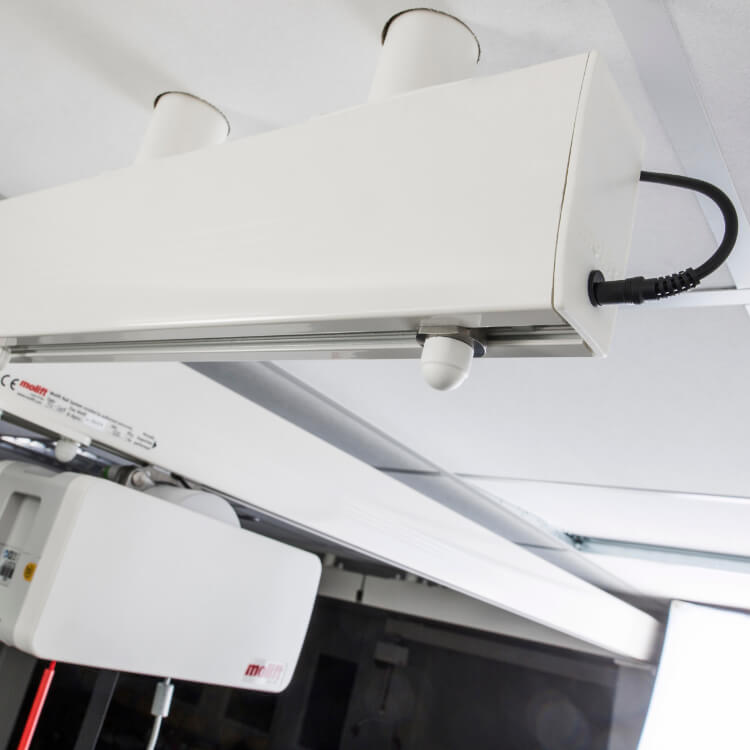

- In-Rail-Charging (IRC) = charging in rail as an accessory
- Accessories such as traverse switch and rail switch
Additional information
Rails:
3 dimensions: H62, H112, H142
Switches:
Rail switch and Traverse switch
Max distance between fixtures:
6000 mm
Colour:
White
Length:
Up to 7000 mm
Height:
62, 112, 142 mm
Safe Working Load SWL:
160–500 kg
Material:
Aluminium
